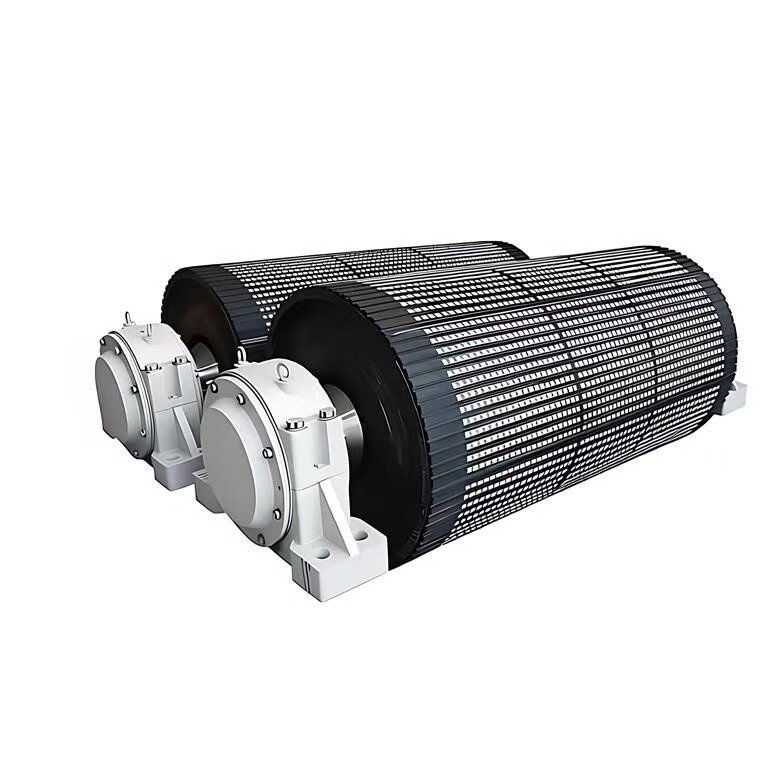

Conveyor Pulley

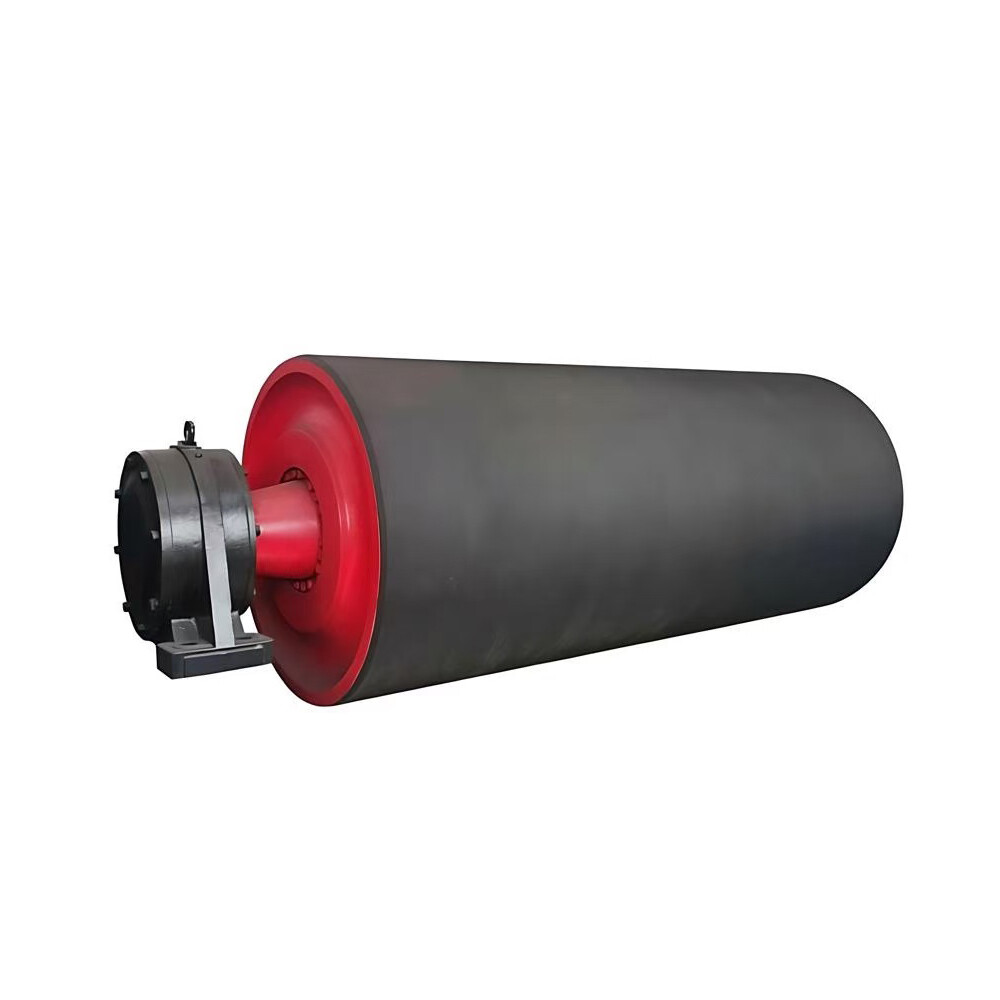

Name: Conveyor Pulley
SKU: 0

———

Belt conveyor pulley is one of the most versatile components in conveyor systems, used to change the direction of the belt in the conveyor system or to drive the belt or to put tension on the belt.

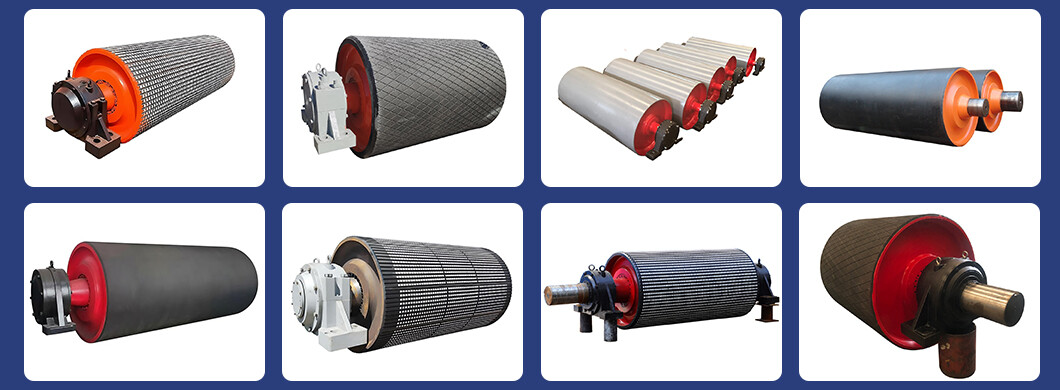

Pulley Type: Drive/Head Pulley, Return/Tail Pulley, Snub Pulley, Take-Up Pulley, Bend Pulley.

Belt Width: From 400-2400. Larger sizes are available on request.

Application: Sand quarries, coal mines, metallurgy, machinery, ports, construction, electricity, chemistry, food packing and other industries.

Inquiry

Contact

Product Introduction

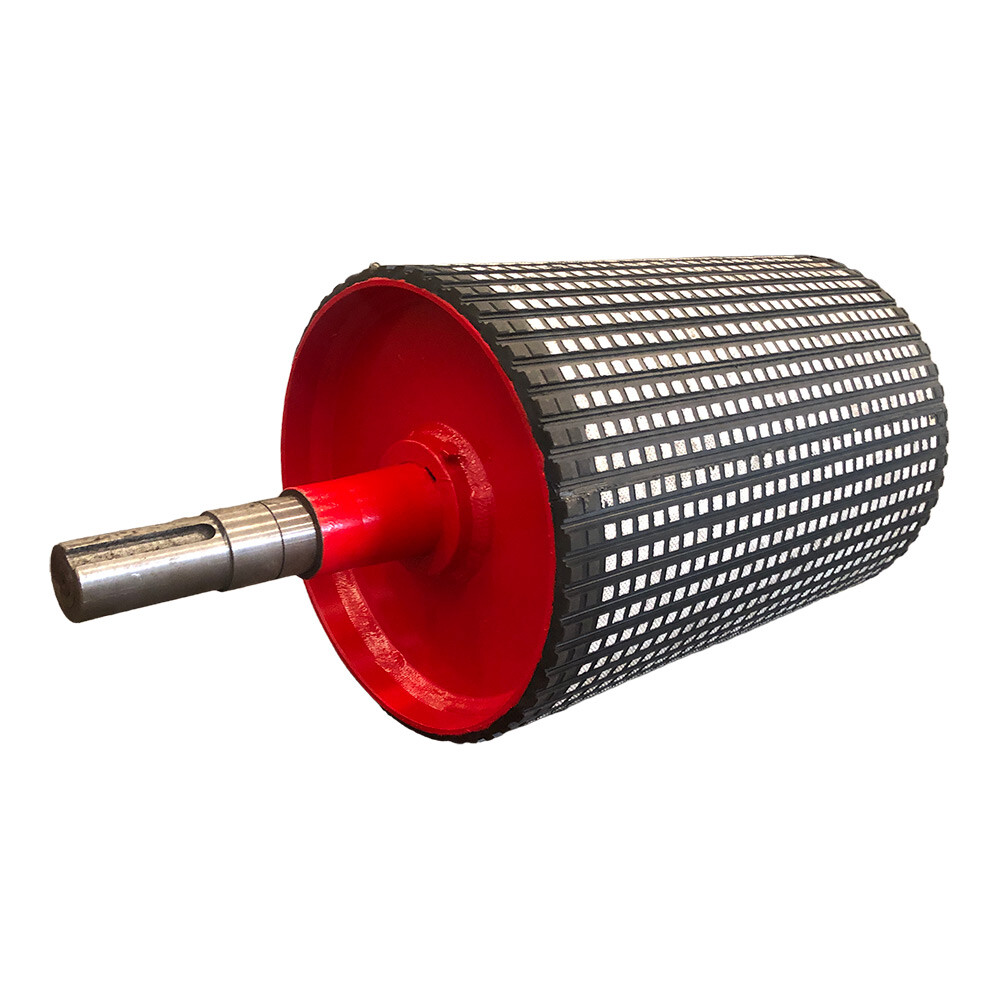

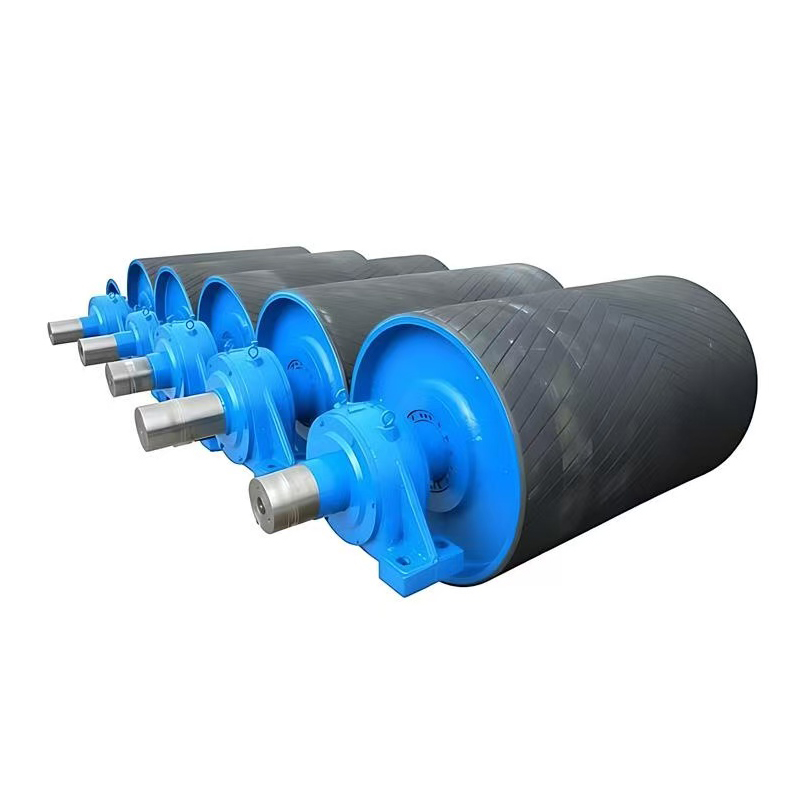

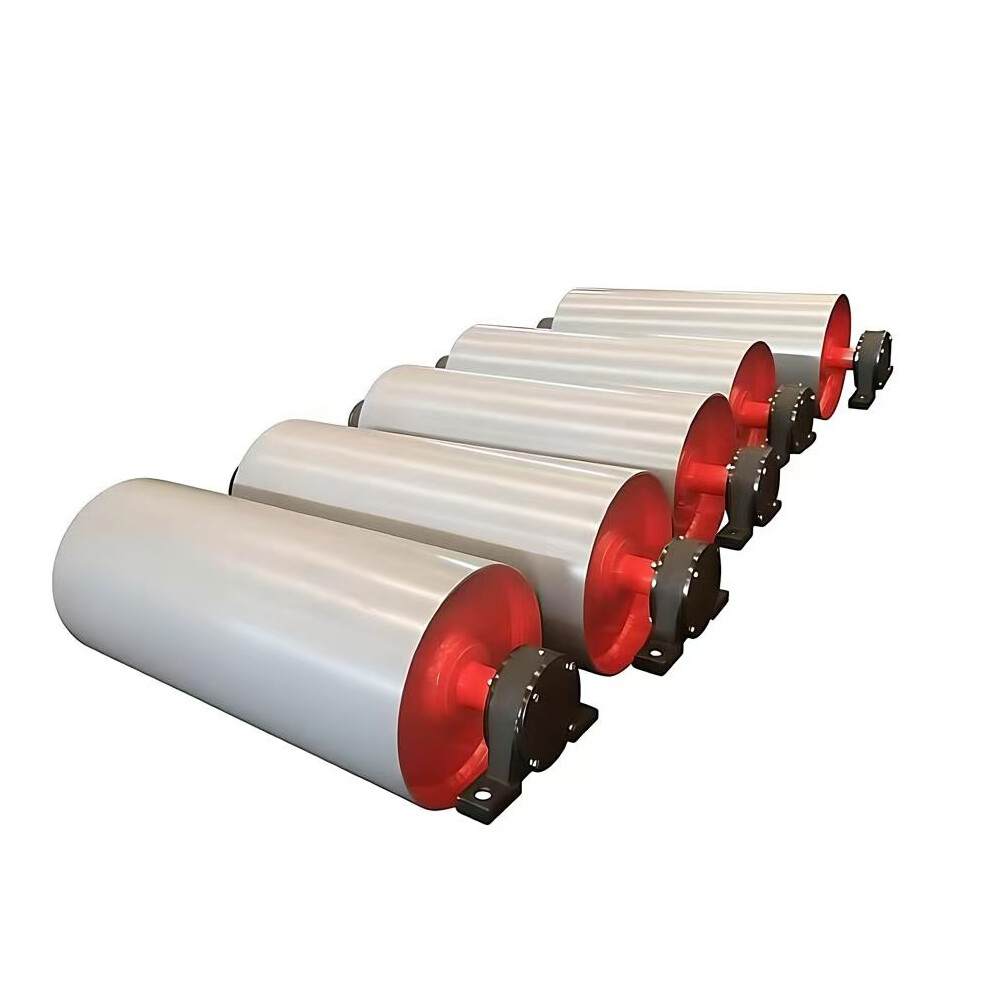

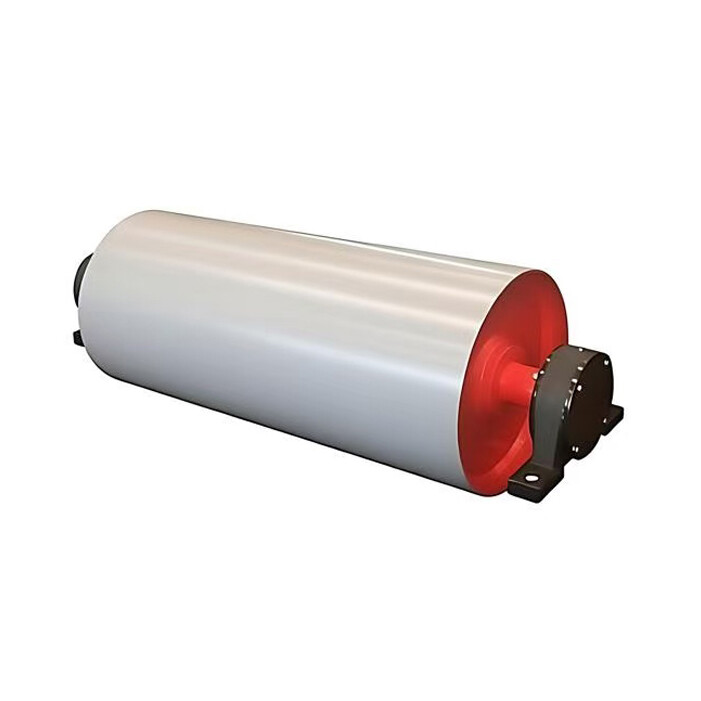

Our pulley/drums are divided into three types according to their load-carrying capacity covered with rubber/ceramic/polyurethane:

● Light: Bearing aperture 80-100mm, the shaft and hub are single-width plate welded cylinder structure connected by single key.

● Medium: Bearing aperture 120-180mm, the shaft and hub are expansion sleeve connection.

● Heavy: Bearing aperture 200-220mm, the shaft and hub are expansion sleeve connection, and the drum body is cast-welded structure.
Different types of pulleys have distinct functional divisions, jointly ensuring the stable operation of conveyor belts. Their main categories and functions are as follows:

● Drive/Head Pulley: Installed at the feeding end, powers the belt and runs the system

● Return/Tail Pulley: Installed at the discharge end, redirects the belt for a loop, can also tension short conveyors

● Snub Pulley: Installed near the drive pulley, increases wrap angle and friction, prevents slipping

● Take-Up Pulley: Installed in the middle/tail of long conveyors, adjusts tension, fixes slack, avoids deviation and slipping

● Bend Pulley: Installed at the turning section, redirects the belt and provides tension, ensures stable running

Specification

Pulley Standard
Brand		SPD
Standard		CEMA/JIS/DIN/Australia
Pulley Tube		Q235 carbon steel high-precision ERW seam pipe with state-of roundness and straightness to ensure well-balanced rotation.
Bearing Brand		SKF, FAG, NSK, LYC,HRB, or according to your requirements.
Life Time		50000-60000 hours
Application		Coal mining industry, cement, steel, harbour etc.
Technical Parameters
Data	Driving Pulley (rubber surface)		Bend Pulley (smooth surface & rubber surface)
Belt Width	Standard Diameter of Pulley		Standard Diameter of Pulley (mm)
500 mm	500mm		250,315,400,500
650 mm	500mm,630 mm		250,315,400,500,630
800 mm	500mm,630mm,800mm,1000mm,1250mm,1400 mm		250,315,400,500,630,800,1000,1250
1000 mm	630mm,800mm,1000mm,1250mm,1400 mm		250,315,400,500,630,800,1000,1250,1400
1200 mm	630mm,800mm,1000mm,1250mm,1400 mm		250,315,400,500,630,800,1000,1250,1400
1400 mm	630mm,800mm,1000mm,1250mm,1400 mm		315,400,500,630,800,1000,1250,1400
1600 mm	630mm,800mm,1000mm,1250mm,1400 mm		400,500,630,800,1000,1250,1400
1800 mm	630mm,800mm,1000mm,1250mm,1400 mm		400,500,630,800,1000,1250,1400
2000 mm	800mm,1000mm,1250mm,1400 mm		500,630,800,1000,1250,1400
2200 mm	1000mm,1250mm,1400 mm		630,800,1000,1250,1400
2400 mm	1000mm,1250mm,1400 mm		800,1000,1250,1400

Product Features

1, Over 40 years since 1985 for design, engineer, install, innovate and maintain complete belt conveyors, components and services.
2, Germany BEUMER GROUP advanced technology cooperation.
3, Certified by SGS, BV, and ISO9001:2008 quality management system
4, Passed issued by national administration of work safety mine safety standard center.
5, High-quality raw material selection made rollers working lifetime 50000 hours on average.
6, Long Life-Span & Energy Saving: resistance of roller rotating is 30% lower than that of national standards, which can save 40% power consumption per hour.

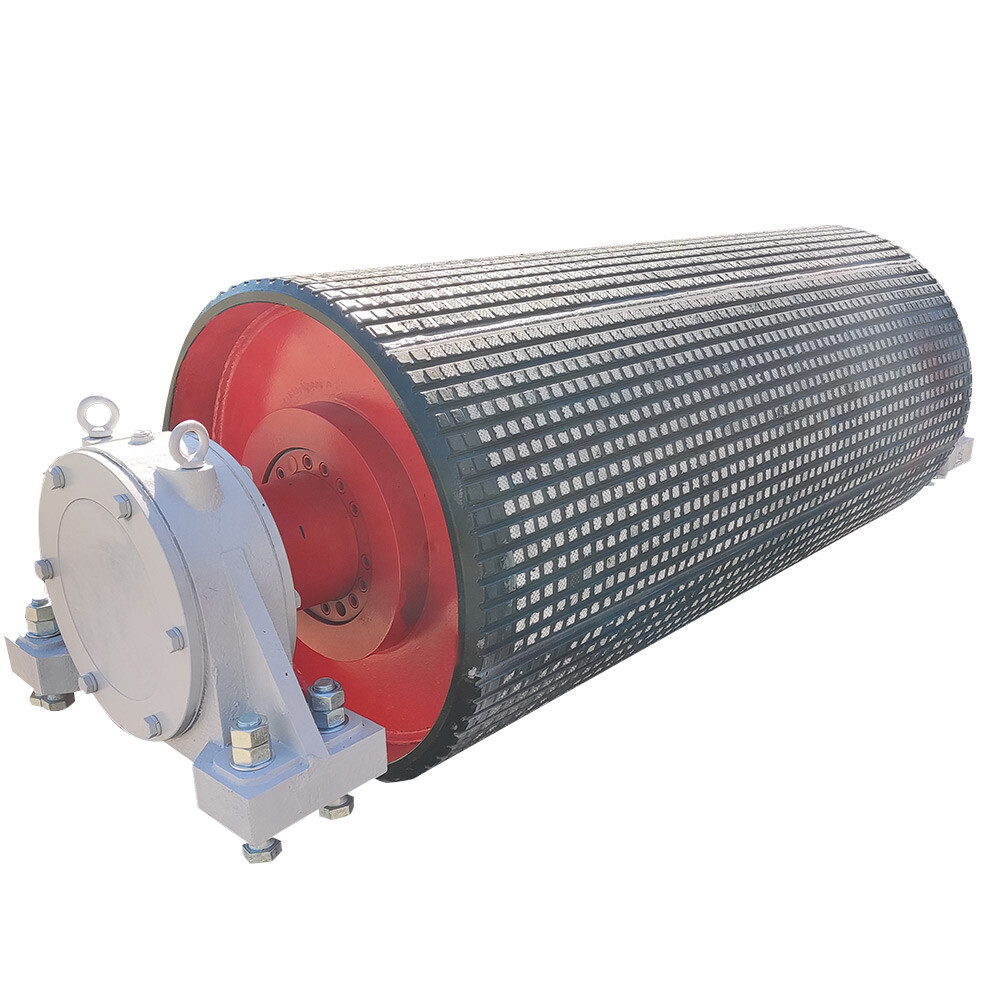

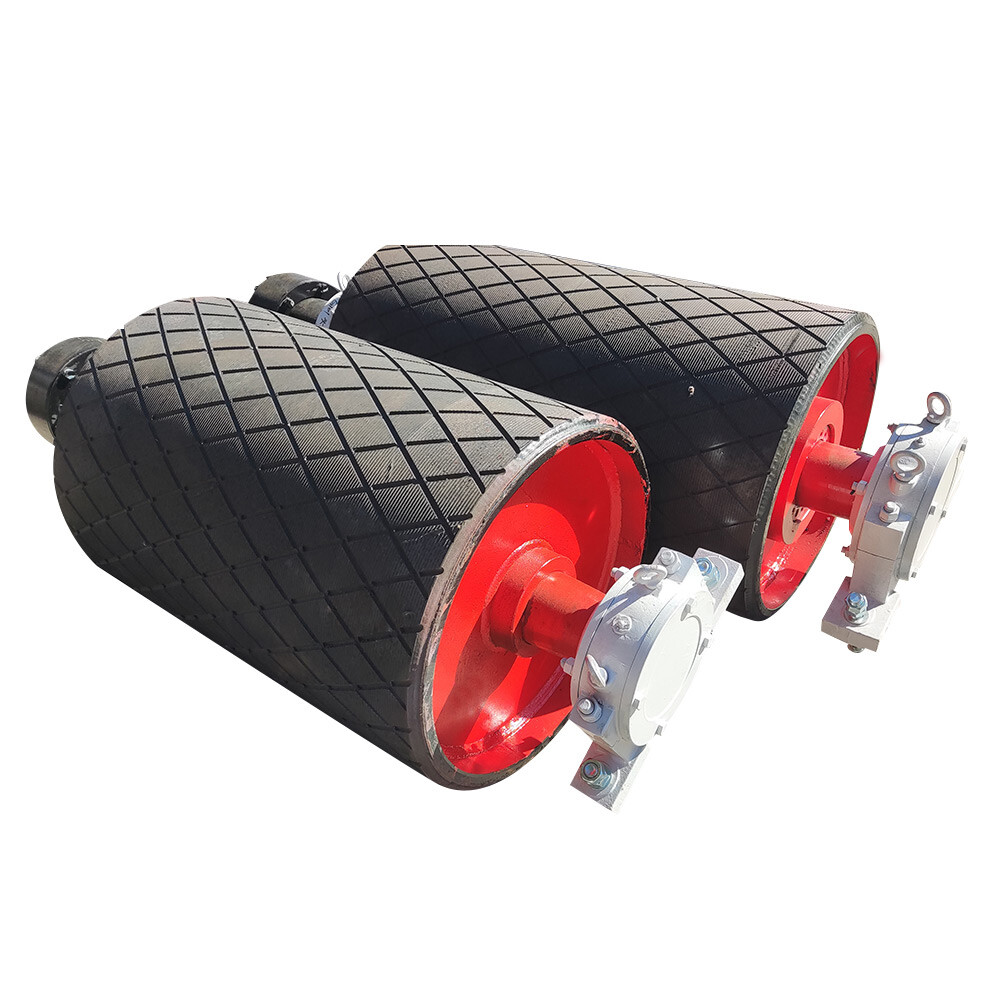

High Resistance to Wear

All materials adopt the highest domestic standards to ensure that the roller has full friction.

Dust-Proof & Water-Proof

Effectively isolate the external water and dust, protect the belt machine, effectively prolong the service life of the belt machine.

Easy Installation & Simple Maintenance

The product are easy installation and simple maintenance. And our professional team will provide the guidance for our customers.

Long Service Life

Exquisite raw materials and factory inspection ensure that our products have along service life.

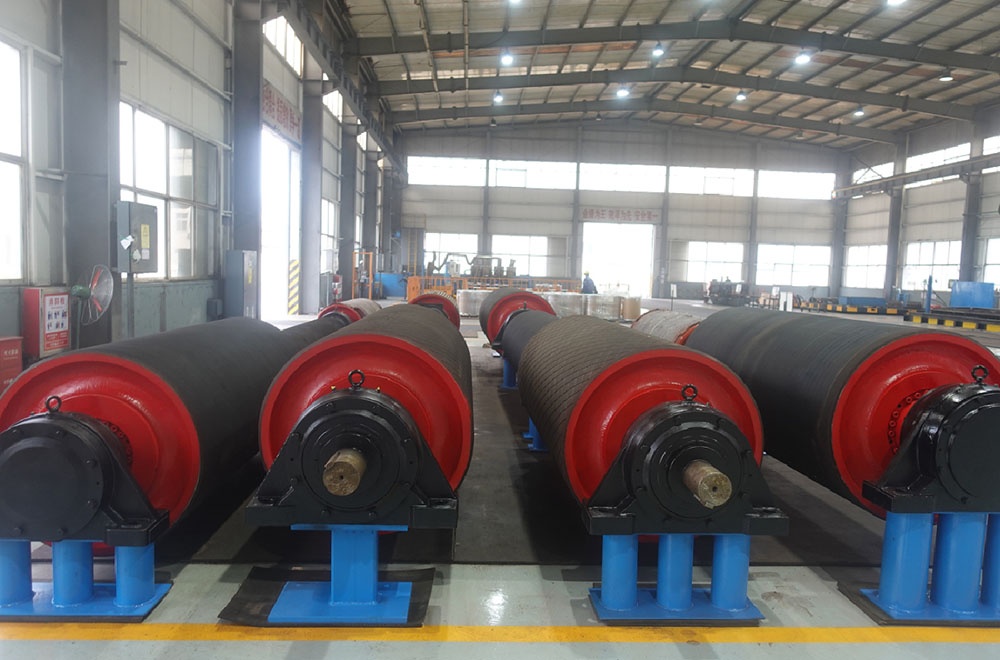

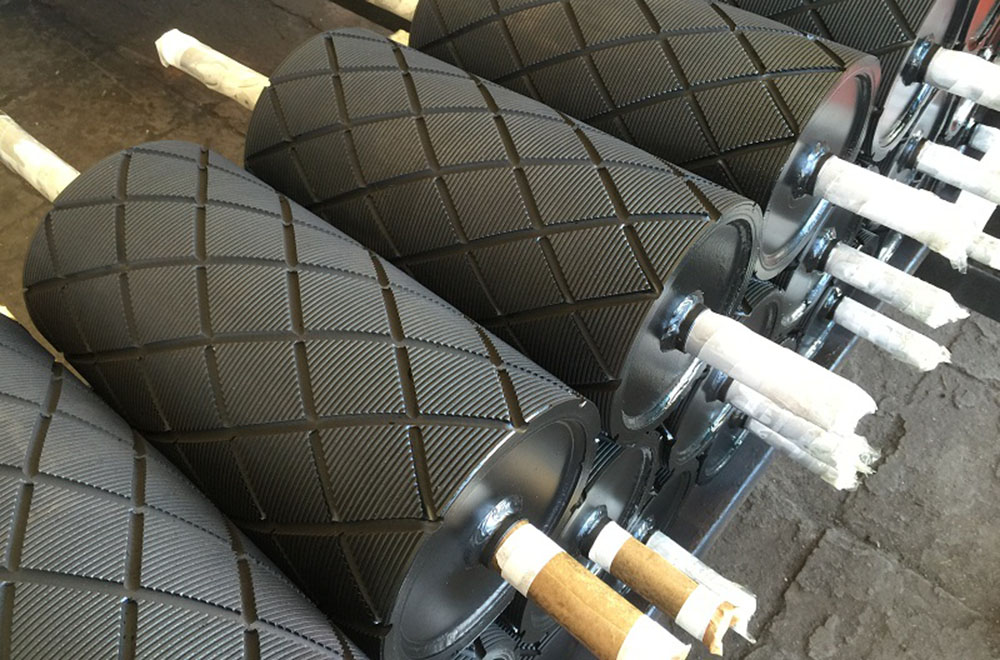

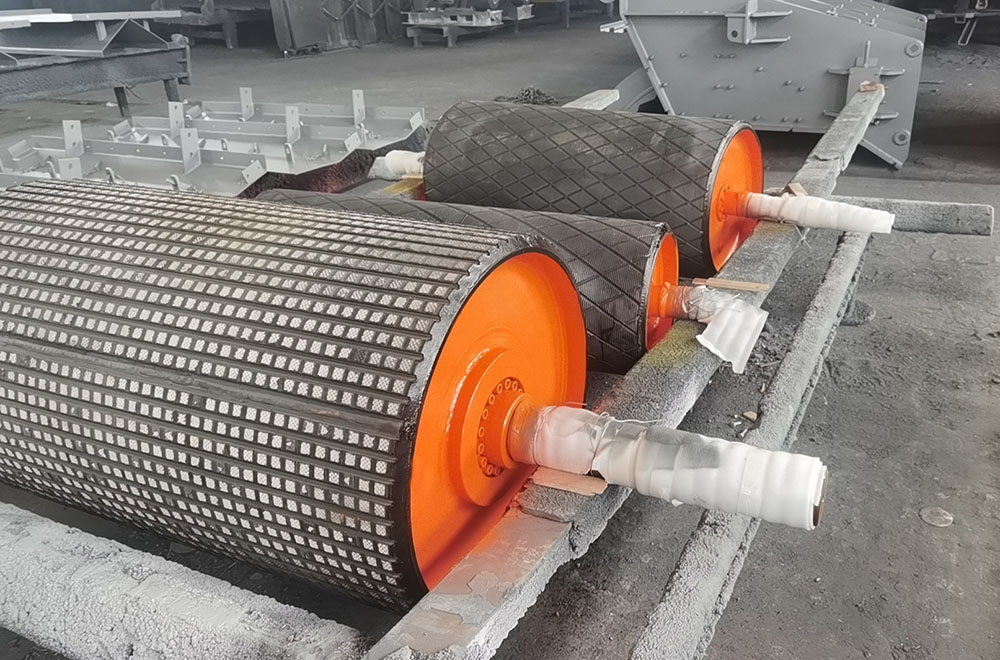

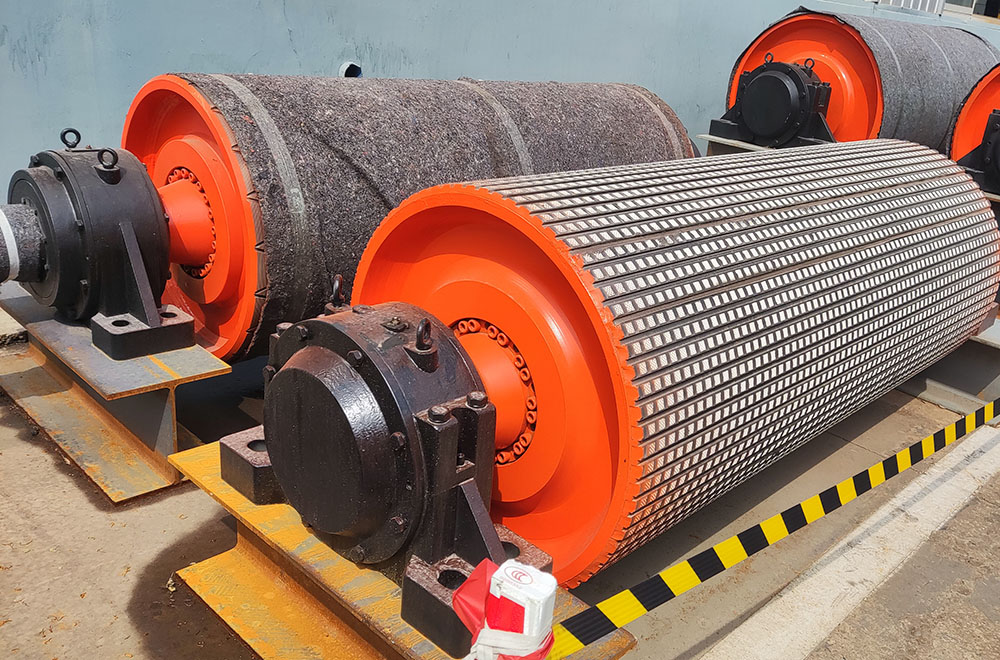

Project Performance

The Pulley of The Coal Conveyor Project

The Pulley of The Concrete Batching Plant

The Pulley of The Port Conveyor Project

The Pulley for Grain Equipment

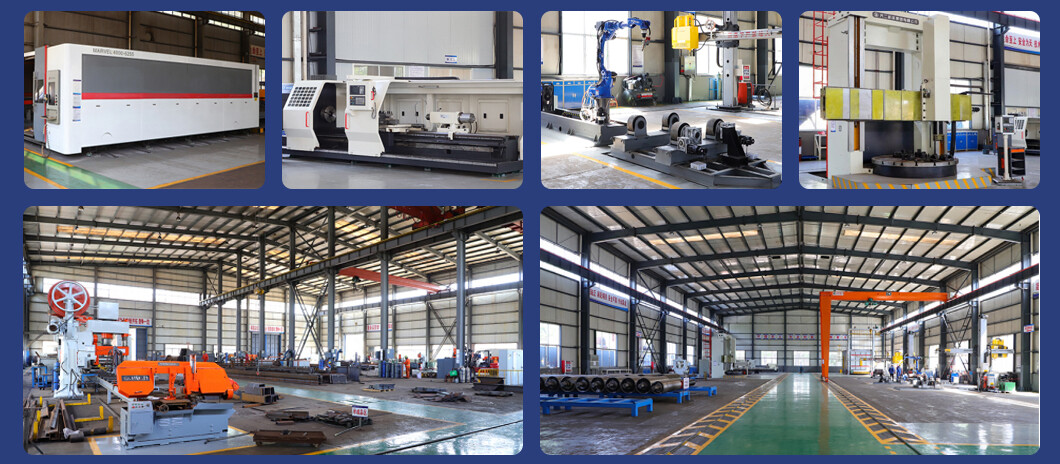

Main Equipment & Facility

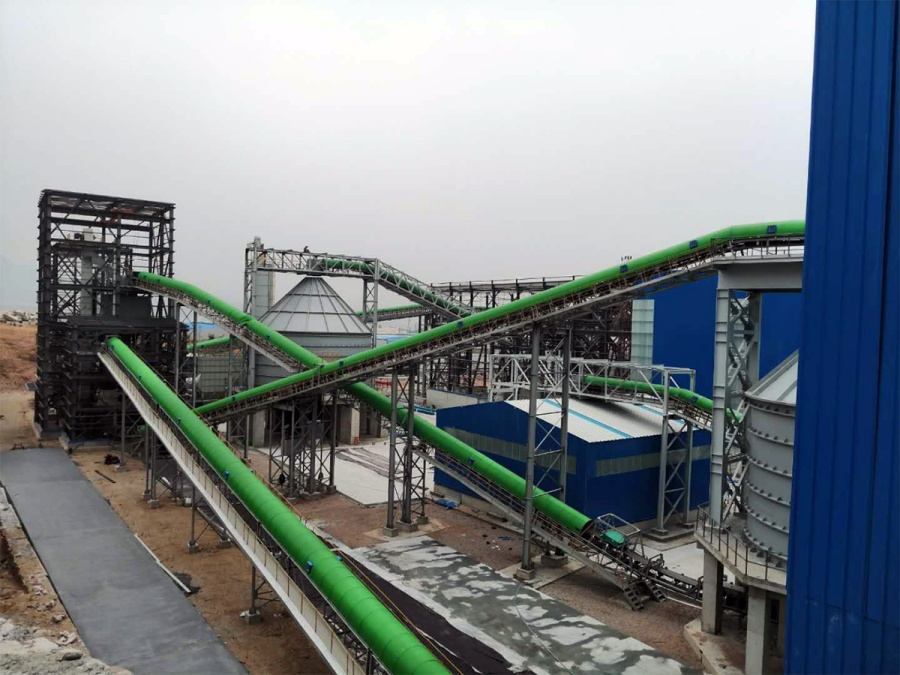

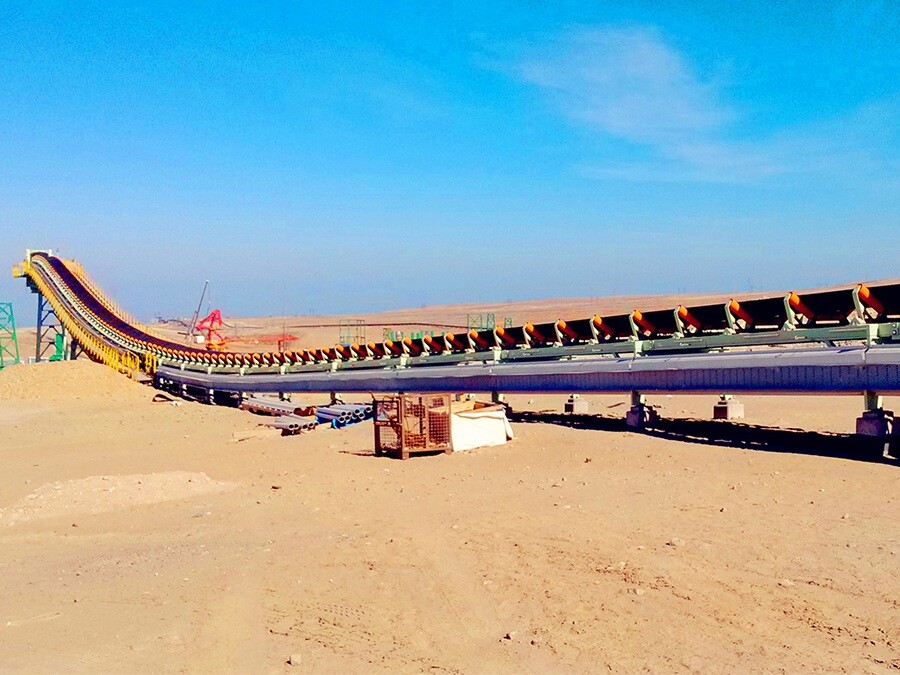

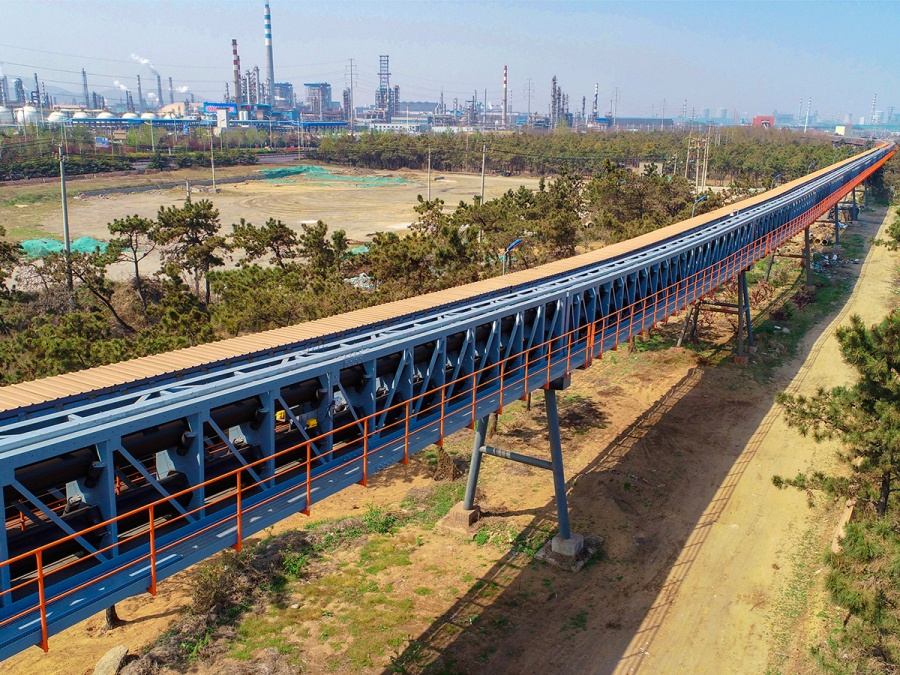

Our Conveyor System Project

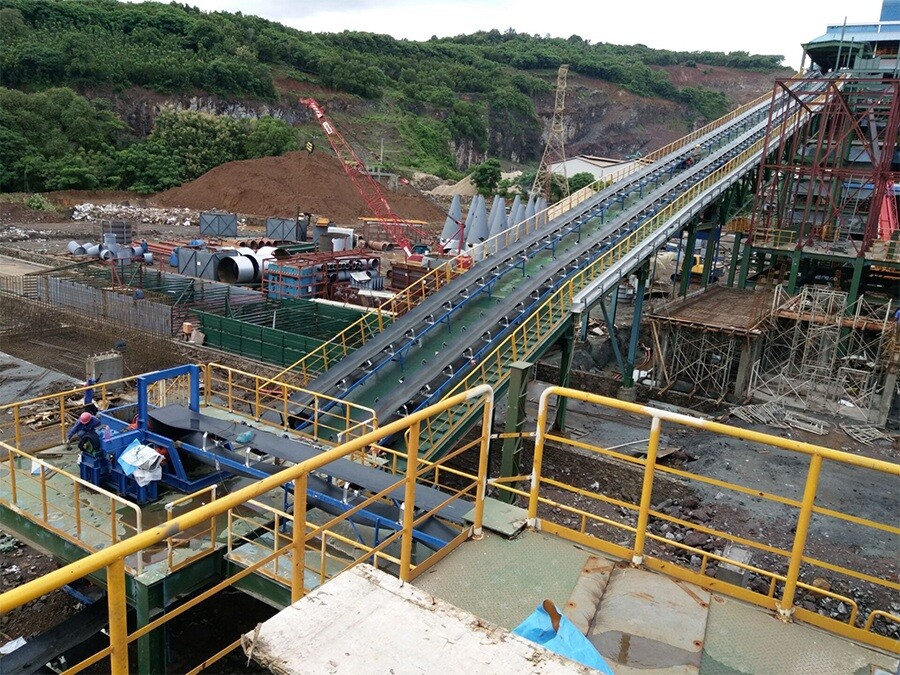

Ore Conveyor System Project

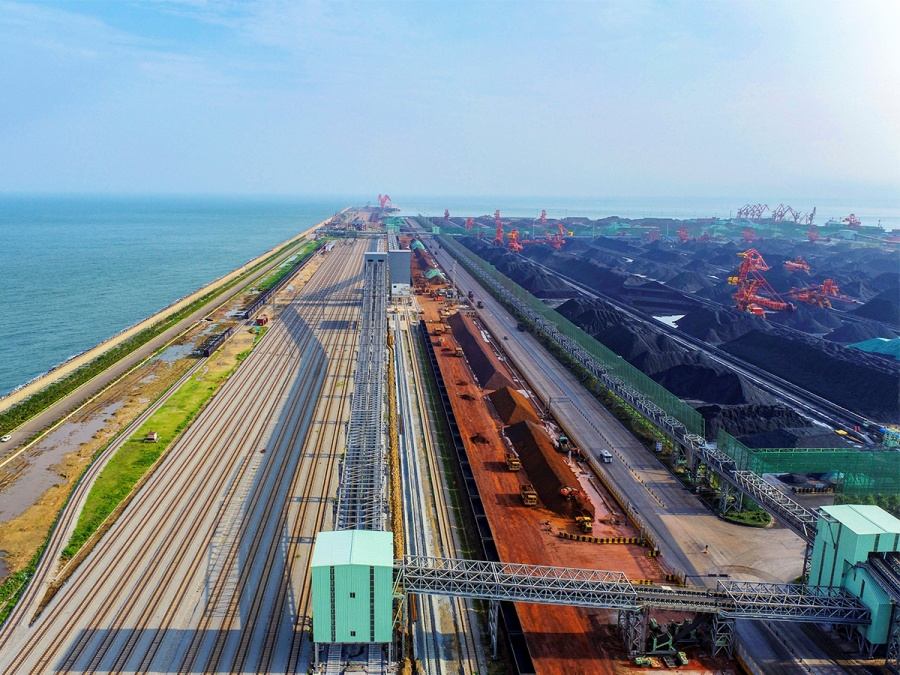

Port Conveyor System Project

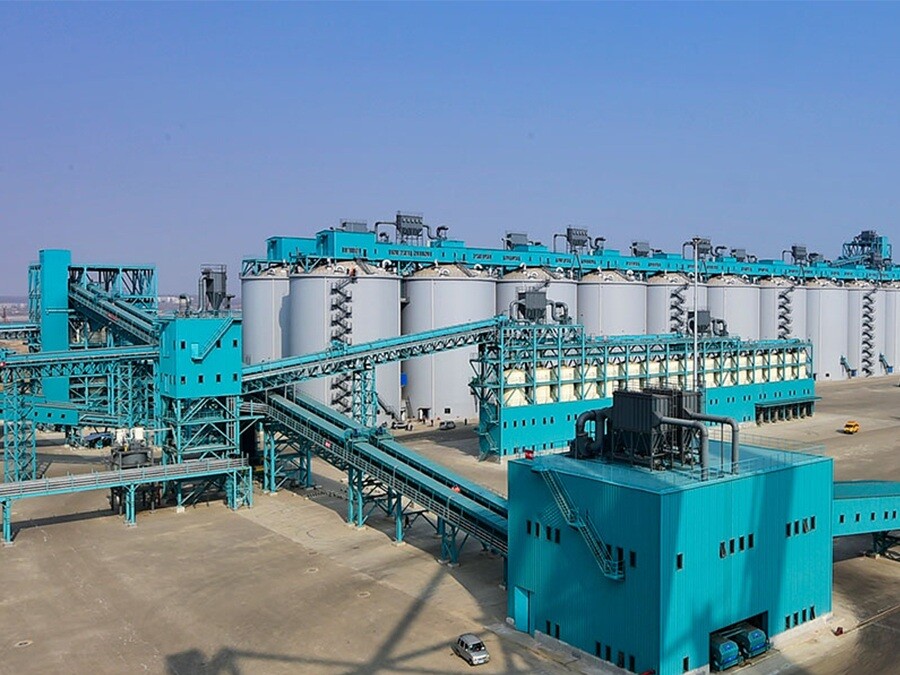

Grain Storage and Handling System

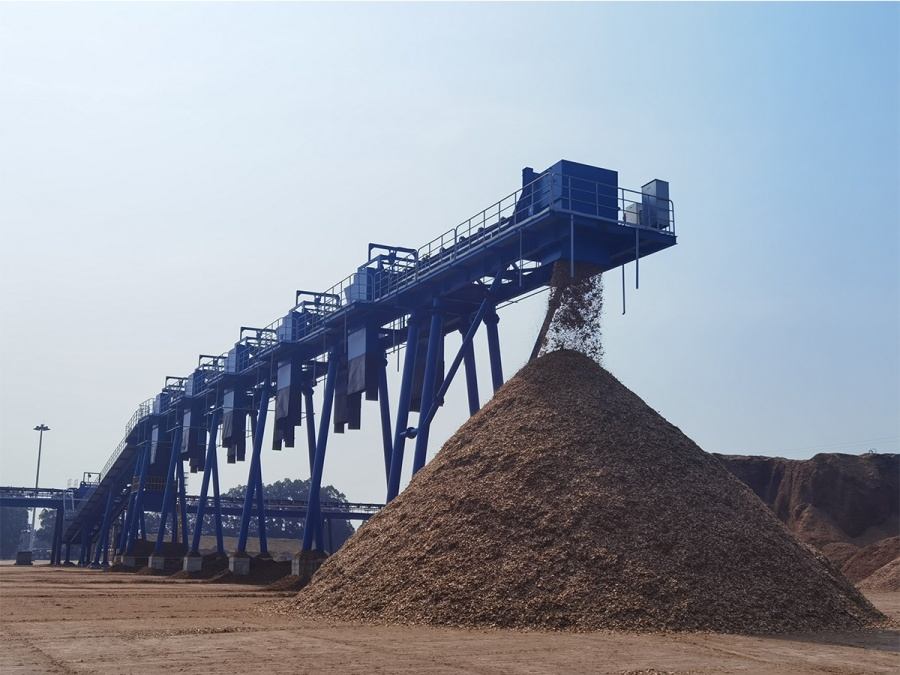

Wood Chip Conveyor System Project
Sand and Aggregate Conveyor System Project

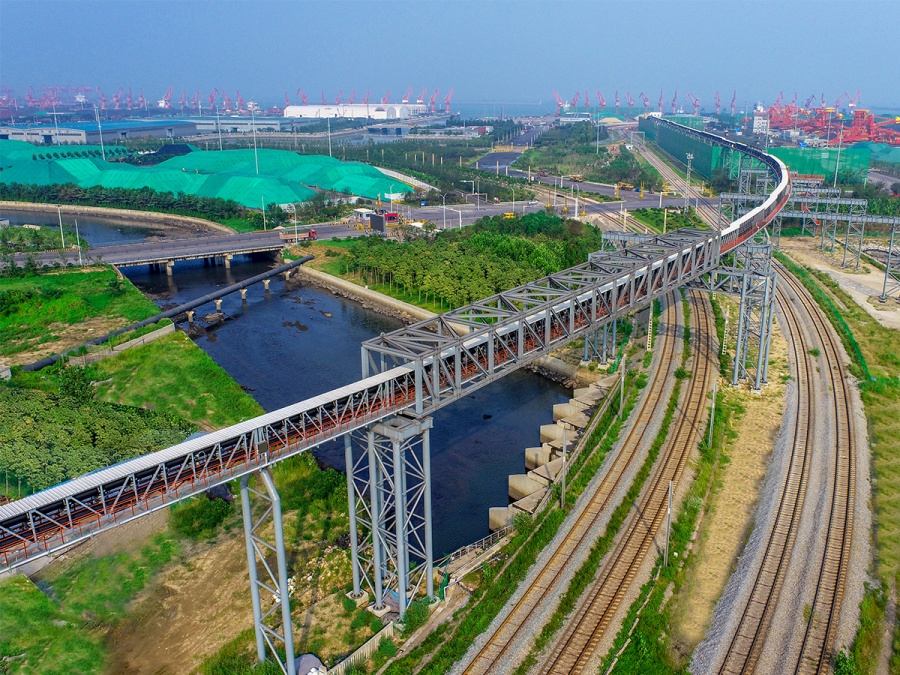

Power Plant Pipe Conveyor Project

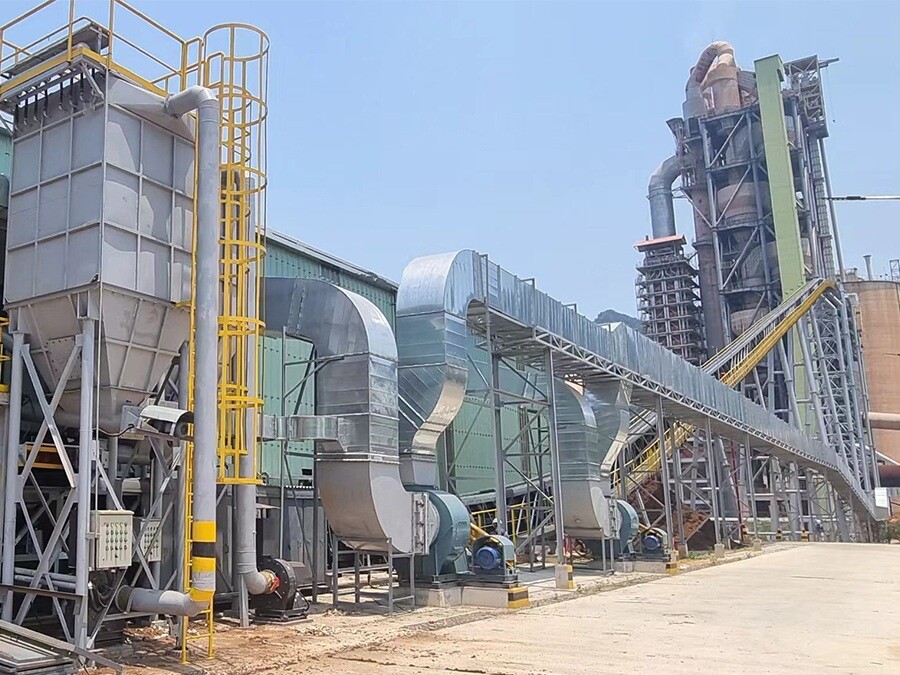

Cement Conveyor System Project
Coal Conveyor System Project
Mining Conveyor System Project

Packing & Delivery

Company Profile

Shandong Sealand Equipment Group Rizhao Co.,Ltd. is a large comprehensive state-owned enterprise combining industrial product R&D and manufacture, steel structure and equipment producing, general contracting services for industrial system integration and equipment and maintenance. Its main business covers port, marine equipment, mining, electric power, cement, papermaking and other industries.
As an integrated solution service provider covering the full process of design and R&D, production and manufacturing, installation, operation and maintenance, we boast an excellent management team, outstanding professional technologies, a profound cultural foundation, and rich industry expertise. We consistently adhere to the to the concept of "Based on port, technology innovation, products leading and integrated services", and are committed to delivering beyond-expectation services to our customers.

Company Certificate

Customer & Exhibition

FAQ

● Q1:Can you provide samples?

A: We can provide 1-2 samples of conveyor rollers free of charge, with the customer bearing the shipping cost. For the conveyor pulleys, we accept the sample/trial order with one piece.

● Q2:Do you support product customization?

A: Yes! We can customize production according to the customer's drawings and specification parameters (size, material, function).

● Q3:How long is the delivery time?

A: 30-60 days for regular orders. Large-volume or special customized orders need to be negotiated based on the actual situation.

● Q4:What are the payment methods?

A: 30% T/T in advance + balance payment before shipment, or advance payment + L/C at sight.

● Q5: Which countries have your products been exported to?

A: Our products have been exported to more than 30 countries including Vietnam, Thailand, Russia, Brazil, the United States, Canada, etc., and we are familiar with the compliance requirements of different markets.

● Q6. How to ensure product quality?

A: 100% strict quality inspection before shipment, and third-party inspection is supported; the average product lifespan is 50,000-60,000 hours, and it has passed multiple international certifications.

● Q7. Is the packaging suitable for sea shipping?

A: Export-standard sea shipping packaging is adopted, which is waterproof, corrosion-resistant and climate-fluctuation-resistant, fully meeting the requirements for sea transportation.
