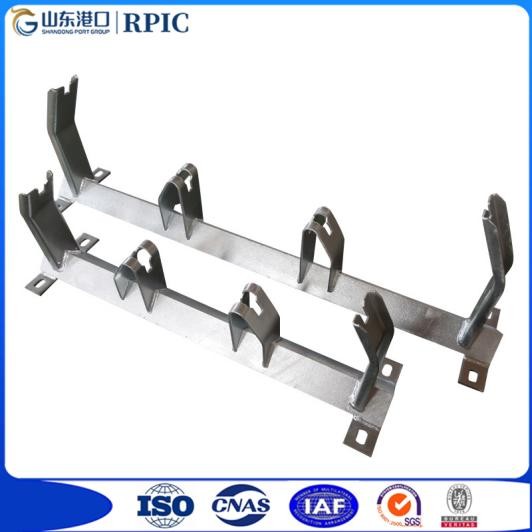

1. CARRYING FRAME

The carrying roller frame is an important part of the belt conveyor and is used to support rollers and roller sets.

The carrying roller frame can be painted or galvanized.

The material is angle steel/channel steel/steel tube, and the conveyor frame is widely used in the mining, metallurgical, and coal industry. It can be produced in different sizes based on belt width, frame angle, and conveyor types. It is a very important component of nonstandard machinery

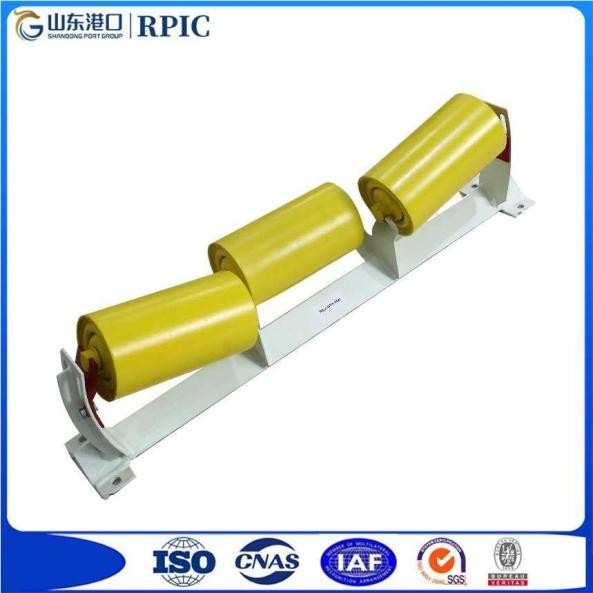

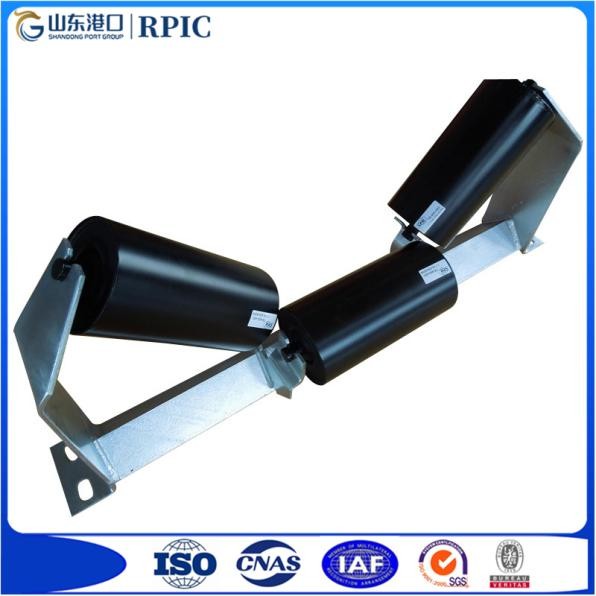

2. OFF-SET FRAME

The off-set frame is used for the belt conveyor and is used to support rollers and roller sets.

Off-set frames can be painted or galvanized.

The material is angle steel/channel steel/steel tube, and it is widely used in the mining, metallurgical, and coal industry. It can be produced in different sizes based on belt width, frame angle, and conveyor types. It is a very important component of nonstandard machinery.

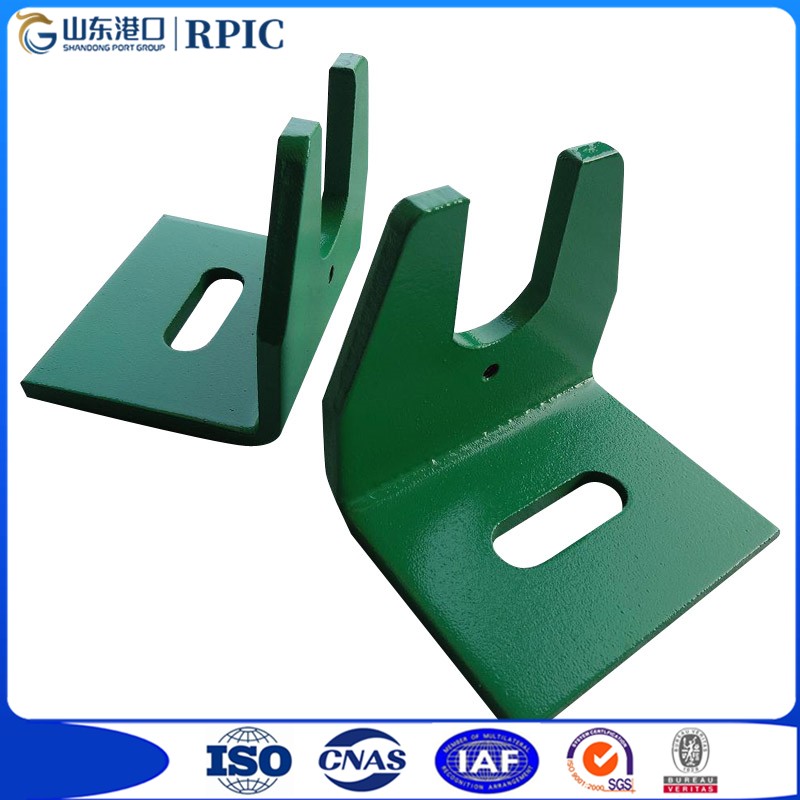

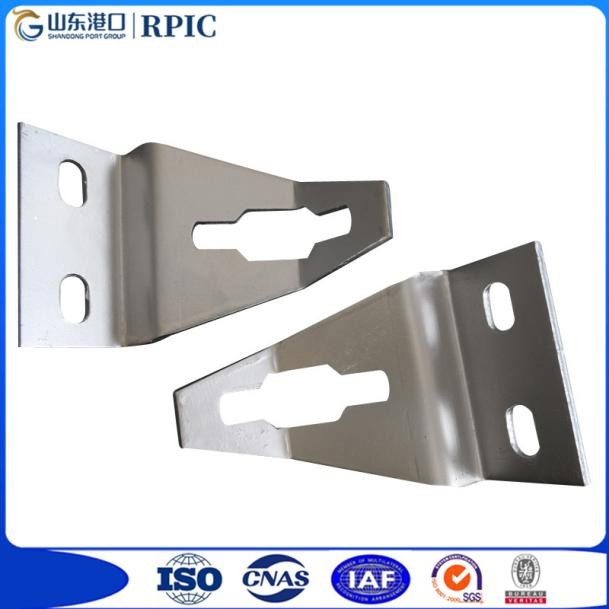

3. BRACKET

A roller Bracket/Hanger is used for custom installation of single or multiple rollers in various applications. It is normally used to support the return roller.

The material is angle steel, it can be produced in different sizes to fit the roller and the conveyor.

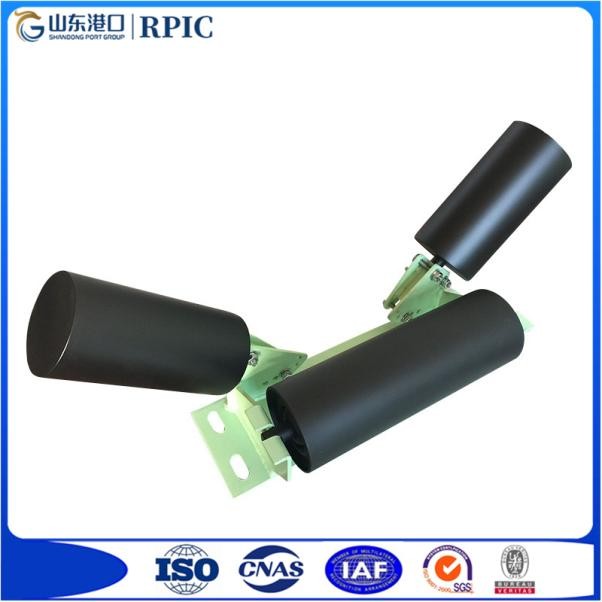

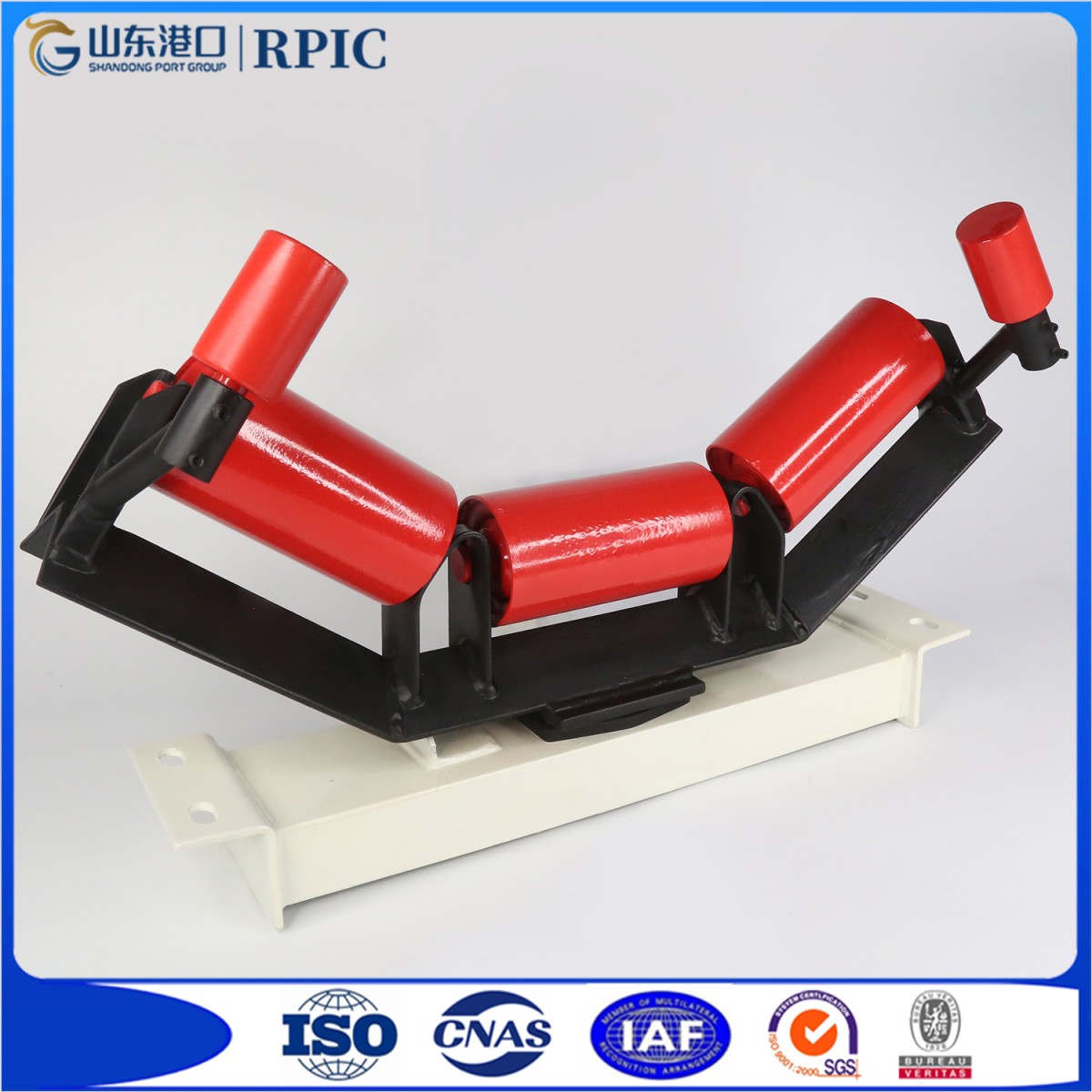

4. SELF-ALIGNING CARRIER FRAME

Self-aligning carrier frame is an important part of belt conveyor and is used to support rollers and roller sets

The whole roller set of self-aligning carrier roller automatically trains the belt and protects edges from damage caused by misalignment.

The material is angle steel/channel steel/steel tube, and it is widely used in the mining, metallurgical, and coal industry. It can be produced in different sizes based on belt width, frame angle, and conveyor types. It is a very important component of nonstandard machinery.

It’s produced with inclination degrees of 30°,35°, and 45°

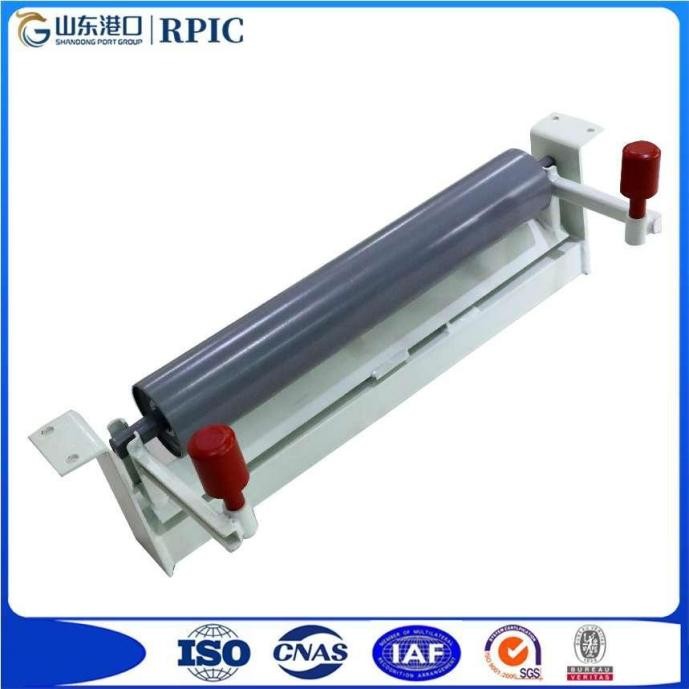

5. SELF-ALIGNING RETURN FRAME

Self-aligning return frame is an important part of the belt conveyor and is used to support the return roller.

The whole roller sets of self-aligning return rollers automatically train the belt and protect edges from damage caused by misalignment.

The material is angle steel/channel steel/steel tube, and it is widely used in the mining, metallurgical, and coal industry. It can be produced in different sizes based on belt width, frame angle, and conveyor types. It is a very important component of nonstandard machinery.
