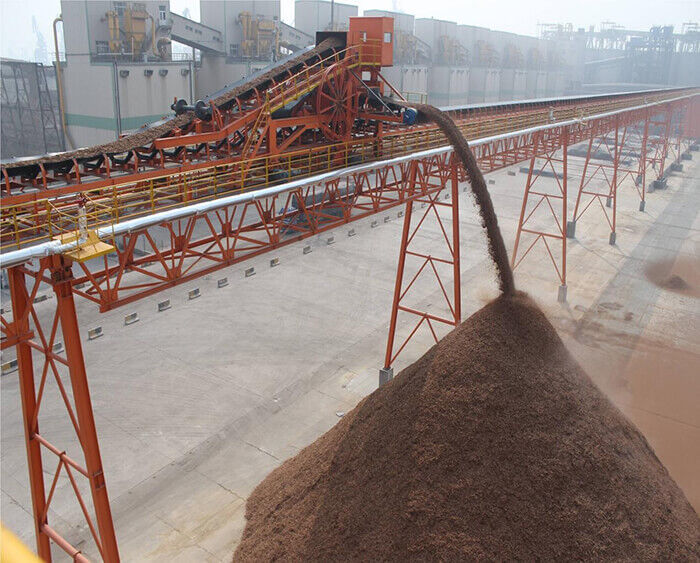

Rizhao Port Shipbuilding and Machinery Industry Co.,Ltd is the leading provider of custom bulk conveying systems. We offer heavy-duty belt conveyors for a wide range of bulk handling applications.

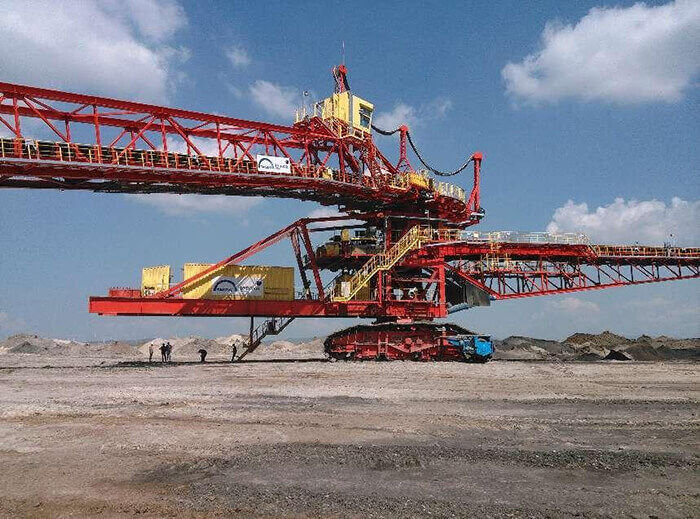

The right bulk material handling system can add automation and fluidity to any application. We offer a diverse range of optional equipment to complement our conveying systems in order to provide you with a complete system designed to handle your specific material. Belt, weighing units, delumpers, reclaiming equipment,shelters and load out systems for trucks, rail cars, and barges are all available.

All our belt conveyors and conveyor systems are engineered around your unique application to ensure the best bulk handling solution possible.

Advantage:

● Heavy-duty construction

● Custom design for optimal handling

● Various belting options

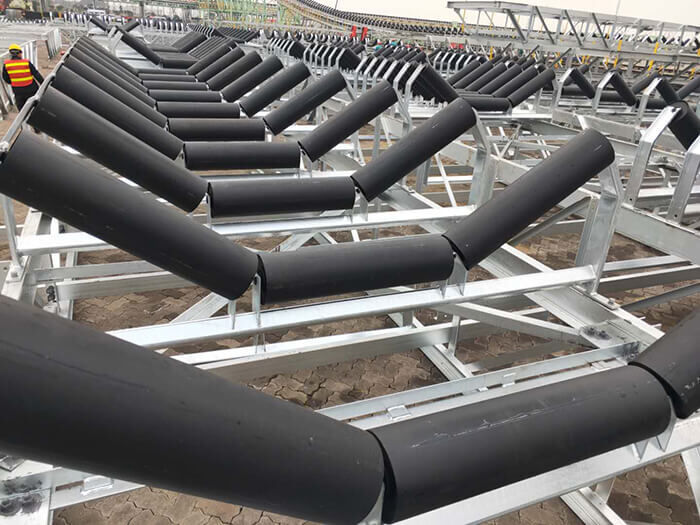

Standard troughed belt conveyors are comprised of conveyor belting that rides on heavy-duty troughed idlers. Idlers range in angles from 20°-45° and are securely mounted to a structural steel frame.

Key basical points:

These belt conveyors can be run at various inclined angles, typically between 0°- 20° (30° with cleated/chevron belting).

For different application, our design team can help to give a right suggestion, all those information and data will be test suitable to your project.

Troughed Side Walls

Troughed belt conveyors provide high-capacity bulk material handling. The trough design also contains and arranges material in one continuous stream, while at the same time, eliminating spillage. The troughed belt can also help shield material from unforeseen forces, such as airflow from other equipment operating nearby.

Dust Control at Load Points

Integrated skirtboard and exhaust ports provide additional control for each customer’s specific application. These are usually located at the tail section of the conveyor where the material is loaded onto the belt. This design centers the material on the belt while also containing dust and fines. A dust pick-off point is often located at the top of the discharge hood.

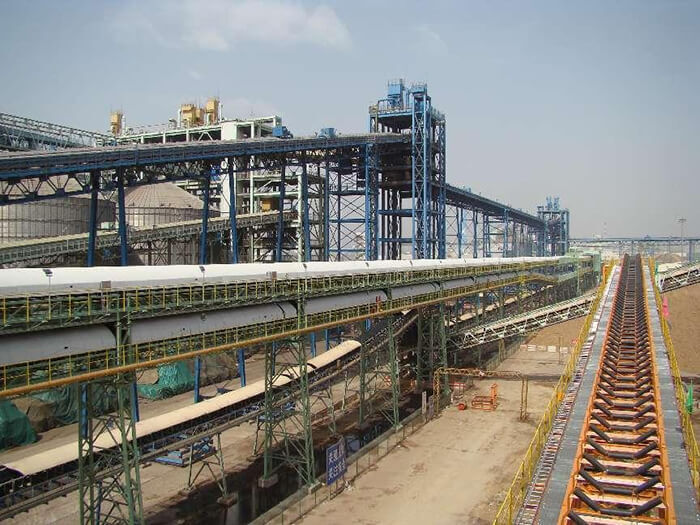

Truss Frame

Heavy-duty box truss frames are available in several standard depths. This type of frame construction is used when long spans are required between support points. In addition to span length, proper truss selection also accounts for load factors such as wind and snow.

Applications

RPIC has been providing bulk material handling equipment and solutions to a variety of industries since we were born. This includes:

● Coal Handling for Power Plants

● Clinker and other raw materials for Cement Plants

● Woodchip and Bark Handling for Pulp/Paper Mills

● Sludge Handling for Process Applications

● Rail Unloading/Loadout

● Bulk Warehousing of Granular Products

● Sand Conveying Systems for Foundries

● And more…
